Description

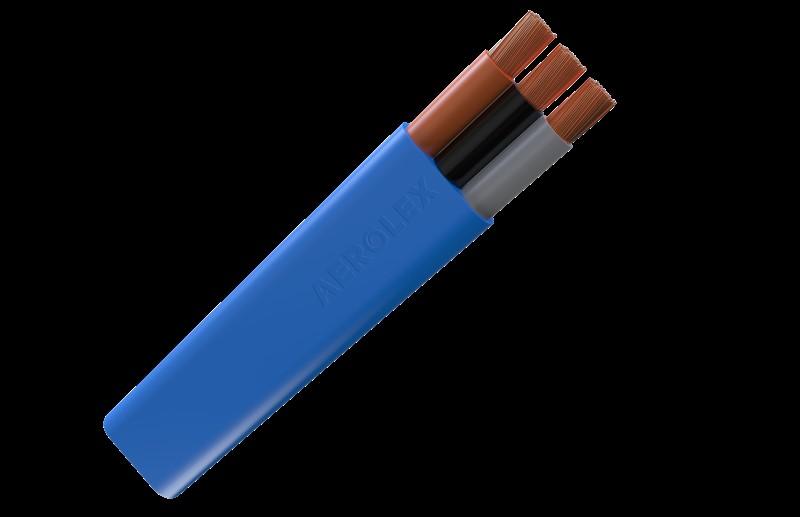

As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 90°C. Adapted to DIN VDE 0250 and DIN VDE 0282 Excellent insulation properties in water Very low water absorption Preservation of the mechanical strength VI.31/10904/01 - confirming the suitability of TML type B in drinking water. Standards: BS 6007, IEC 60245, CEI 20-19, VDE 0282, AS 3191, AS/NZS 5000.1, HD 22.1, NF C 32-201, French Standard 32-102-16 Core /Cable Colour Core colour: as per Asian/European colour code Cable colour: Blue Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V Test Voltage 3000 V Temperature Range -400C to 900 C Conductor: Copper, plain, finely stranded, Class 5 according to IS 8130, BS 6360, IEC 60228 & VDE 0295. Insulation: Oil & Water Resistant EPR (Ethylene-Propylene Rubber)/EPDM/XLPO based Elastomer Compound Sheath: Special Elastomer Compound suitable for permanent immersion in Drinking Water. One-sheath-system: EPR special compound; according to KTW and ACS
