Description

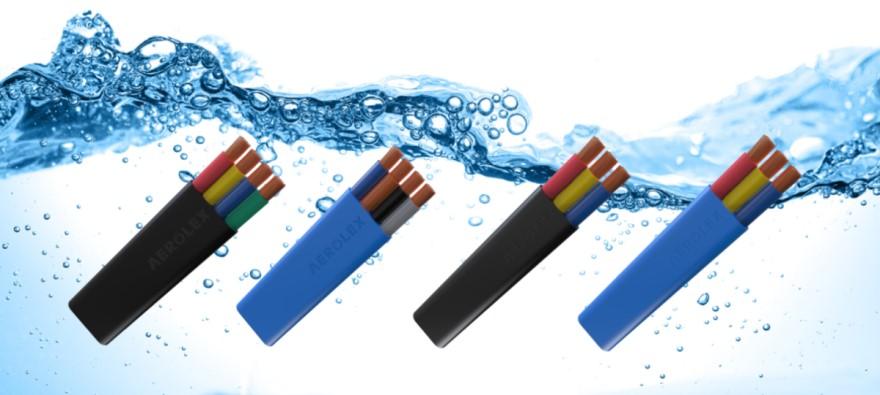

AEROLEX PVC FLAT CABLE are used for giving electrical connection to the submersible pump motors, upto the depth of 500 metres. These cables are manufactured keeping in mind the several tough and difficult conditions like dry, moist, and wet environments. The slot available in the tubewell, being narrow the shape of the cable has to be suited for such an application. Therefore, Aerolex makes sure that they manufacture double sheathed cables of the highest quality to attain the greatest possible degree of reliability. Thus, Aerolex is regarded as one of the most genuine submersible pump cable manufacturer and submersible flat cable manufacturer in the country. PVC flat cables serve as energy and control cables in lift technology. They have a nominal voltage of 300/500 V or rather 450/750 V. The cores are laid out parallel side by side in groups and those cables are suitable for temperatures up to +70°C. Additionally, those cables show an improved fire performance (flame retardant and self-extinguishing) and are oil resistant acc. to internal standard. Cables and wires of this product range have the following characteristics: -lower bend radius compared to round cables -oil resistance -flame retardant and self-extinguishing -Use freely suspended height of up to 35 m possible Standards IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32-201, French Standard 32-102-1 Core /Cable Colour Core colour: as per Asian/European colour code Cable colour: Blue /Black , other colour on request Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V, Test Voltage 3000 V Temperature Range -150C to 700 C Features : • Tough & flexible cable with excellent moisture, abrasion & weather resistance. • Safe, Reliable and power saving. • Excellent Wet Electrical Properties. • Excellent Sheath properties When submerged in water • Good Flexibility and electrical properties • Print on every meter of cable Applications : To supply power to submersible pumps in a deep borewell for • Irrigations • Drinking Water Supply • Mine Dewatering • Industries • Swimming Pools • Fountains • Offshore Drilling Rigs • Sewage Treatment Plants • Sea Water Filtration Plants • Aquariums Construction : • Conductor :High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295. • Insulation : Specially developed dielectric grade PVC Compound impervious to water, oils, grease etc. • Sheath : Sheathing by High abrasion resistant tough & flexible PVC Compound.
