Description

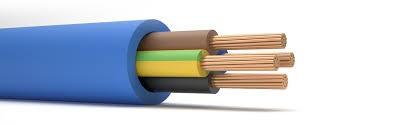

Designed for power and control of submersible pumps these KTW approved cables are perfect for drinking water. KTW Approved Cables - This range of CLEAN CABLE are round cables devoted for submersible pump motor feeders. It may be installed for a depth down to 600 mtr and suitable for drinking waters. The cable carries approvals from WRAS, ACS , KTW , DM174 making it suitable for many installation applications. These are jacketed using non-toxic and non-leaching cross-linked rubber, reducing the chance of aquatic bacteria or other micro-organisms forming, they offer a significant contribution to safety This submersible cable, used extensively in the water treatment industry and the food processing industry, has a voltage rating of 0.6/1kV and a temperature rating of -400C to 900 C. It is suitable for use in water of a maximum temperature of 80oC. • 0.6/1kV • Cross-linked rubber • Class 5 stranding • WRAS Approved • ACS, KTW, D.M.174. & AD8 classification KTW Approved Cables tough & flexible cable with excellent moisture, abrasion & weather resistance. Safe, Reliable and power saving. Excellent Wet Electrical Properties. 1 core , 3 core , 4 cores Round cables with PVC & Rubber Insulation & Jacket Available in SQ MM sizes (European style) 1 sq mm to 240 sq mm and AWG sizes (North American style) 14 AWG to 500 MCM. With sequential Meter / Foot marking. Various voltage rating for different markets: 450 / 750 V, 600 V, 650/1100 V, 600/1000 V, 3000 V. The cables have successfully passed rigorous testing of drinking water requirements of the British WRAS certification (according to BS 6920), the German KTW and W270 for direct and permanent immersion in potable water. The certification agencies have verified the absence of microbial growth, the water taste, appearance, transparency and colour and the absence of any metals or toxic substances. Features : • Flexible, non-toxic and waterproof submersible pump cable suitable for continuous immersion in drinking /potable water • Tough & flexible cable with excellent moisture, ozone, abrasion, chemical & weather resistance. • Safe, Reliable and power saving., • Excellent Wet Electrical Properties. Applications : • Special flexible submersible cable suitable for being permanently submerged, such as: submerged pumps for drinking water, wells and aquariums. • It is also suitable swimming pool applications for lighting systems, filtering and swimming pool’s cleaning. • Also suitable for electrical installations for the production, processing Standards: BS 6007, IEC 60245, CEI 20-19, VDE 0282, AS 3191, AS/NZS 5000.1, HD 22.1, NF C 32-201, French Standard 32-102-16 Core /Cable Colour Core colour: as per Asian/European colour code Cable colour: Blue Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V Test Voltage 3000 V Temperature Range -400C to 900 C Conductor: High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295. Insulation: Oil & Water Resistant EPR/EPDM/XLPO based Elastomer Compound Sheath: Special Elastomer Compound suitable for permanent immersion in Drinking Water
