Description

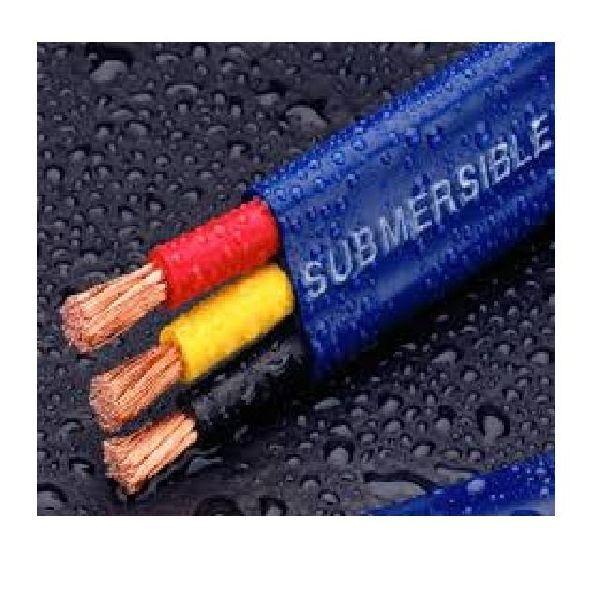

There are different types AD8 as per NFC 15-100 submersible pump cable for different applications like normal irrigation water, drinking water, waste water, sea water, installation inside or outside in dry, damp or wet environments and in hazardous environments (subject to local regulations). for flexible power supplies, suitable for submersible motors and pumps. The synthetic rubber compound is ozone, UV, sunlight and weather resistant. AD8 are intended for connection of electrical equipment in water and for medium mechanical stresses, e.g. submersible pumps, lowering of water level and booster plants. These cables are also suitable for use in drinking water, cooling water, surface water, rainwater. These cables can be used indoors, outdoors, in industrial and agricultural plant. For protected, fixed installation within equipment, pipes or wells, as well as for rotor connections, these cables may be operated with an AC voltage to 1000 V or a DC voltage to 750 V with respect to earth. The permissible AC voltage for motor tests is 3 kV for a maximum duration of 3 minutes. In other respects the specifications of DIN EN 50565-2 apply. AD8 as per NFC 15-100 submersible pump cable Designed for power and control of submersible pumps these ACS approved cables are perfect for drinking water. These are jacketed using non-toxic and non-leaching cross-linked rubber, reducing the chance of aquatic bacteria or other micro-organisms forming, they offer a significant contribution to safety. Features : • Flexible, non-toxic and waterproof submersible pump cable suitable for continuous immersion in drinking /potable water • Tough & flexible cable with excellent moisture, ozone, abrasion, chemical & weather resistance. • Safe, Reliable and power saving., • Excellent Wet Electrical Properties. Applications : Special flexible submersible cable suitable for being permanently submerged, such as: submerged pumps for drinking water, wells and aquariums. It is also suitable swimming pool applications for lighting systems, filtering and swimming pool’s cleaning. Also suitable for electrical installations for the production, processing Standards: BS 6007, IEC 60245, CEI 20-19, VDE 0282, AS 3191, AS/NZS 5000.1, HD 22.1, NF C 32-201, French Standard 32-102-16 Core /Cable Colour Core colour: as per Asian/European colour code Cable colour: Blue Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V Test Voltage 3000 V Temperature Range -400C to 900 C Conductor: High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295. Insulation: Oil & Water Resistant EPR/EPDM/XLPO based Elastomer Compound Sheath: Special Elastomer Compound suitable for permanent immersion in Drinking Water
