Description

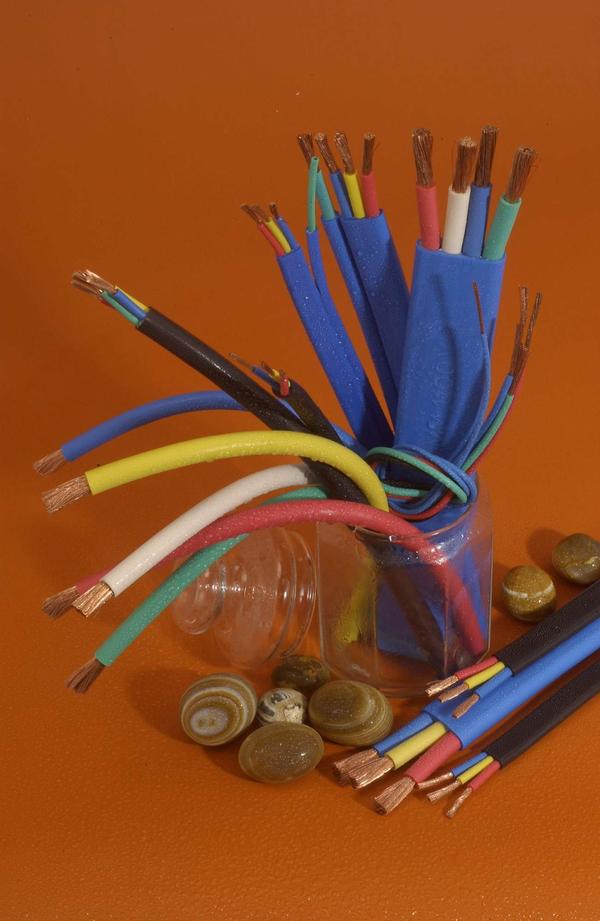

The ACS approved Cable are the Cables used mainly in well casing for supplying current to the Submersible Pump. They are also used where cable is to be immersed permanently in water for power supply to equipment used for irrigation, drinking water, sea water desalination plants, fountains, swimming pools, mine dewatering, wastewater treatment plants, aquariums etc. There are different types of ACS approved Cable for different applications like normal irrigation water, drinking water, wastewater, sea water etc. ACS Approved Cables - This range of CLEAN CABLE are Flat cables devoted for submersible pump motor feeders. It may be installed for a depth down to 600 mtr. and suitable for drinking waters. The cable carries approvals from WRAS, ACS, KTW, DM174 making it suitable for many installation applications. At 0.6/1kV they will meet the same or a higher safety standard than many power cables. Designed for power and control of submersible pumps these ACS approved cables are perfect for drinking water. These are jacketed using non-toxic and non-leaching cross-linked rubber, reducing the chance of aquatic bacteria or other micro-organisms forming, they offer a significant contribution to safety. This submersible cable, used extensively in the water treatment industry and the food processing industry, has a voltage rating of 0.6/1kV and a temperature rating of -400C to 900 C. Features: • Flexible, non-toxic and waterproof submersible pump cable suitable for continuous immersion in drinking /potable water • Tough & flexible cable with excellent moisture, ozone, abrasion, chemical & weather resistance. • Safe, Reliable and power saving., • Excellent Wet Electrical Properties. Standards: BS 6007, IEC 60245, CEI 20-19, VDE 0282, AS 3191, AS/NZS 5000.1, HD 22.1, NF C 32-201, French Standard 32-102-16 Core /Cable Color Core color: as per Asian/European color code Cable color: Blue Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V Test Voltage 3000 V Temperature Range -400C to 900 C Conductor: High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295. Insulation: Oil & Water Resistant EPR/EPDM/XLPO based Elastomer Compound Sheath: Special Elastomer Compound suitable for permanent immersion in Drinking Water.
