Description

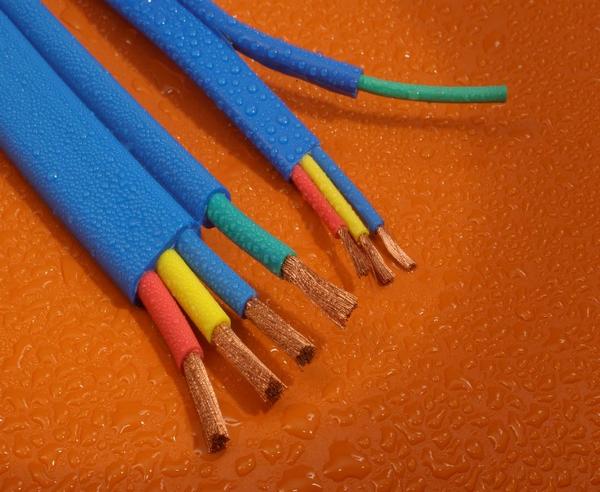

A07VVH2-F (PVC 4 Core Motor Lead Flat Cable with Divisible Earth Core) Cables range by Standard is a specialized product designed for use in underground, under-water, or on wet surface. Made in accordance with IS: 694 specifications, these cables have excellent mechanical and electrical properties. Their outer sheath is made of high abrasion resistant PVC, making them unreceptive to grease, oil and water. In short, Standard’s A07VVH2-F Submersible Cables are crafted with advanced technology to perform efficiently for long time. • A07VVH2-F (PVC 4 Core Motor Lead Flat Cable with Divisible Earth Core) cables are used as supply and control cables for engines for submersible pumps, underwater lighting, and floating switches etc. up to the depth of 500 m and water temperature up to +70°C. These cables are ideal for outer installations in dry, moist and wet environments. The outer sheath of the cable being made of special grade Abrasion resistant PVC makes it impervious to water, grease, oil, etc. making cables highly durable. Cables have 450/750 V with PVC 4 Core Motor Lead Flat Cable(Divisible Earth Core).PVC Sheated, flat flexible installation cables according to 60227 IEC, Low conductor resistance with excellent resistant to moisture, abrasion. Excellent mechanical & electrical properties with longer flexible life. Standards IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32-201, French Standard 32-102-1 Core /Cable Colour Core colour: as per Asian/European colour code Cable colour: Blue /Black , other colour on request Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V, Test Voltage 3000 V Temperature Range -150C to 700 C Features : • Tough & flexible cable with excellent moisture, abrasion & weather resistance. • Safe, Reliable and power saving. • Excellent Wet Electrical Properties. • Excellent Sheath properties When submerged in water • Good Flexibility and electrical properties • Print on every meter of cable Applications : To supply power to submersible pumps in a deep borewell for • Irrigations • Drinking Water Supply • Mine Dewatering • Industries • Swimming Pools • Fountains • Offshore Drilling Rigs • Sewage Treatment Plants • Sea Water Filtration Plants • Aquariums Construction : • Conductor :High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295. • Insulation : Specially developed dielectric grade PVC Compound impervious to water, oils, grease etc. • Sheath : Sheathing by High abrasion resistant tough & flexible PVC Compound.
